Tie-Down Brackets

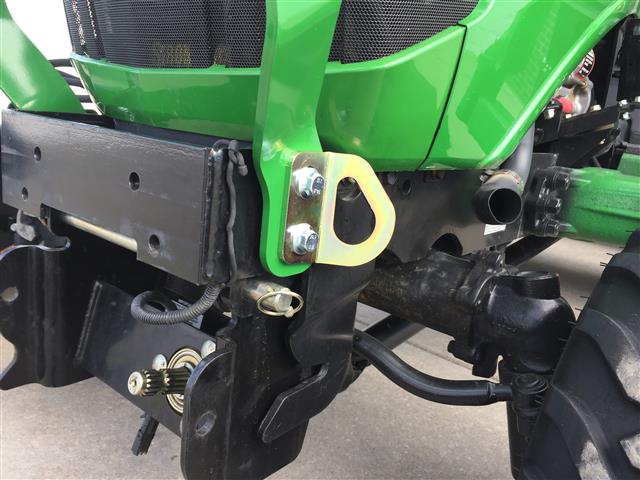

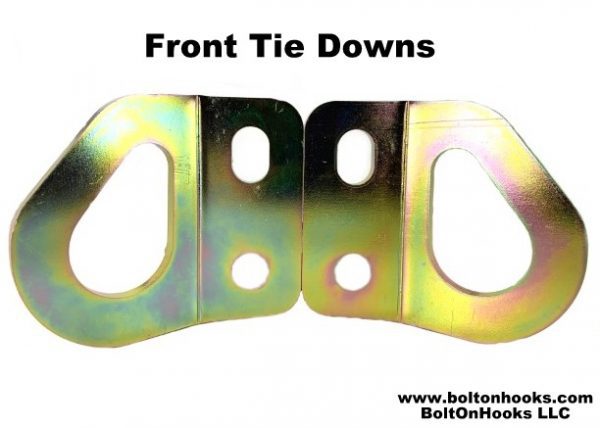

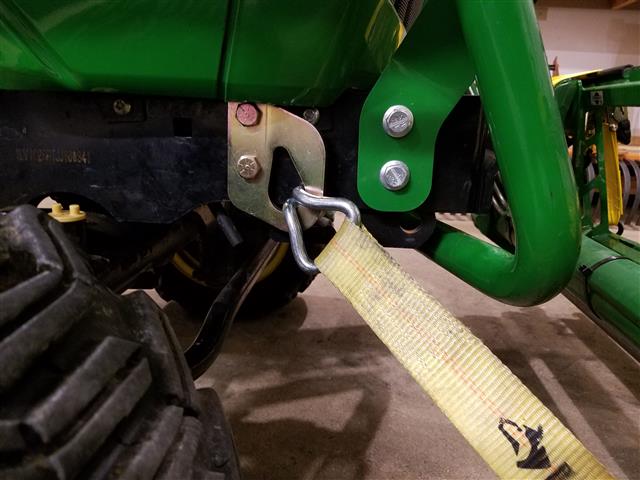

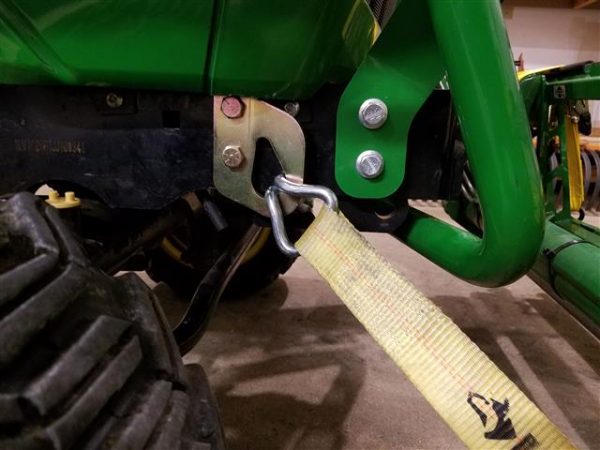

Sold as a pair only, these Front Tie-Downs will fit the 1-Series and Gen2 2025R John Deere tractors and many others. These bolt on using the same bolts and holes as the grill guard on some machine, or empty frame holes in others.  No Hardware is Included.

The slotted holes are 11/16″ wide, and spaced at 1-1/2″ center-to-center minimum, and 2-1/4″ maximum using 1/2″ bolts.

Made in the USA from 1/4″ thick steel and zinc chromate plated for rust and corrosion resistance.

These DO NOT fit the large frame 2R series, or the 3R’s.  Mudd’s Customs has front ones that will, there are already tiedown points on the rear.

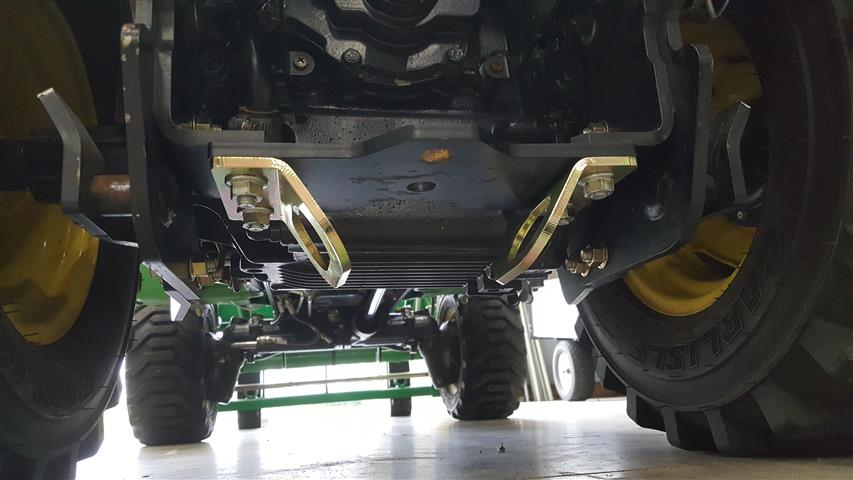

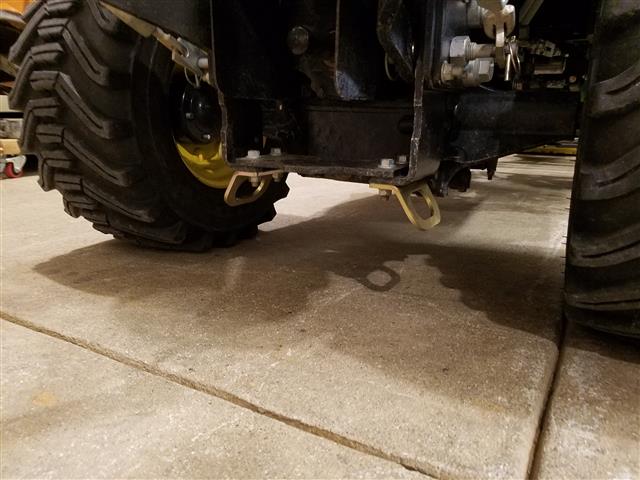

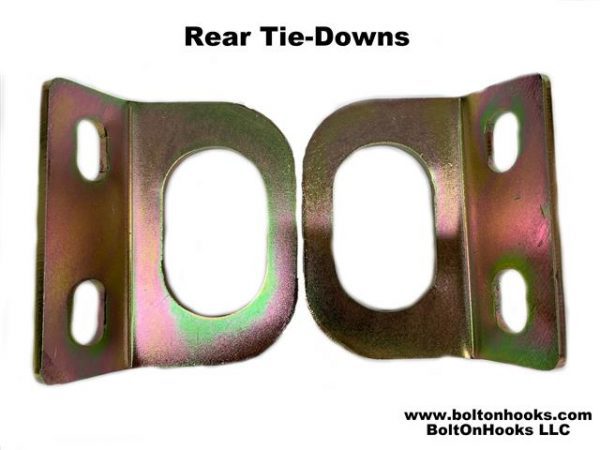

Sold as a pair only, these Rear Tie-Downs will fit the 1-Series and Gen2 2025R John Deere tractors and many others. These bolt on using the same bolts and holes as the rear hitch/drawbar plate. If you have a OEM backhoe, then you may need longer bolts.

The slotted holes are 11/16″ wide, and spaced at 1-1/2″ center-to-center minimum, and 2-1/4″ maximum using 1/2″ bolts.

Made in the USA from 1/4″ thick steel and zinc chromate plated for rust and corrosion resistance.
