Hydraulic Flow Restrictors

KBOH / BoltOnHooks LLC now carries an extensive line of inline Hydraulic Flow Restrictors, many are custom made in-house and ONLY available through us. We are now carrying various sizes and styles in these thread types:

  • NPT
  • JIC
  • ORB / SAE
  • BSPP

Hydraulic Flow Restrictor FAQ’s:

  1. Do I need one or two restrictors on each function? In most cases, one is sufficient, but two are better, and here is why: There are different volumes of fluid on each side of the piston inside of a cylinder, this causes different pressures (or ‘force’) to push the fluid through the small orifice (hole) in the restrictor, so the cylinder may move at different speeds while extending and retracting.  Using two, one one each side, can help balance that.
  2. Can I use a restrictor on a Power Beyond (constant flow) circuit, like to slow down my loader or backhoe’s operation?  No, you never want to place a restrictor on the main uncontrolled hydraulic flow of a machine, you can overheat the fluid and cause pump damage. In the case of a loader or backhoe, you’d need to install them after the valve on each circuit.

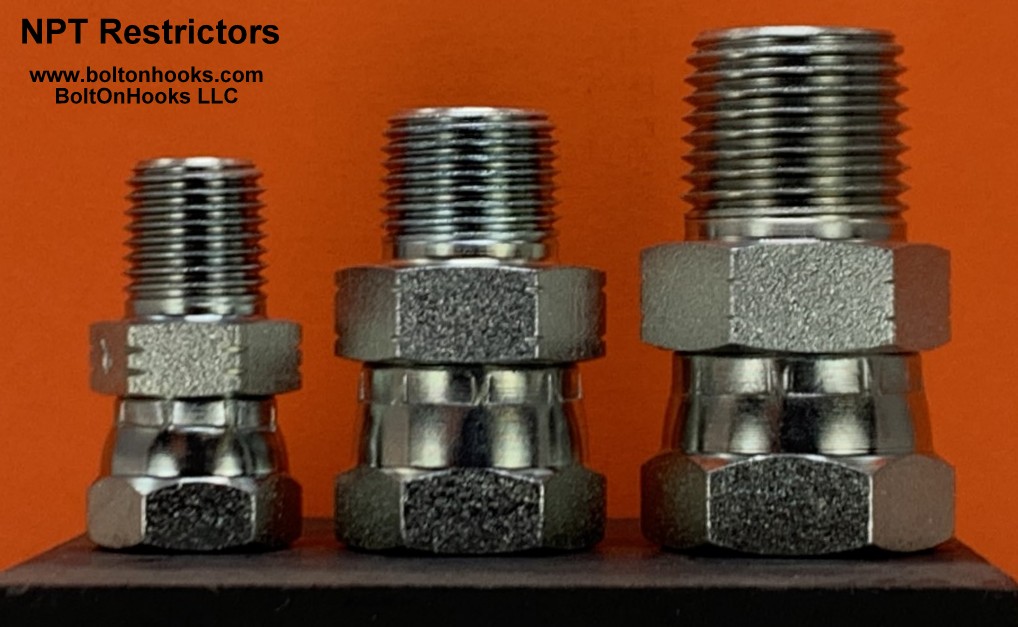

.031″ NPT Flow Restrictors

These .031″ Inline Restrictors have male NPT threads on one side, and female swivel NPT threads on the other so they are easily added to any NPT connection.

Perfect for hydraulic top and side links as well as any other hydraulic cylinder to help slow them down and gain more precise control.

Available in 1/4″, 3/8″, and 1/2″ NPT sizes.

Select options This product has multiple variants. The options may be chosen on the product page

$6.50 – $10.00

SKU: N/A

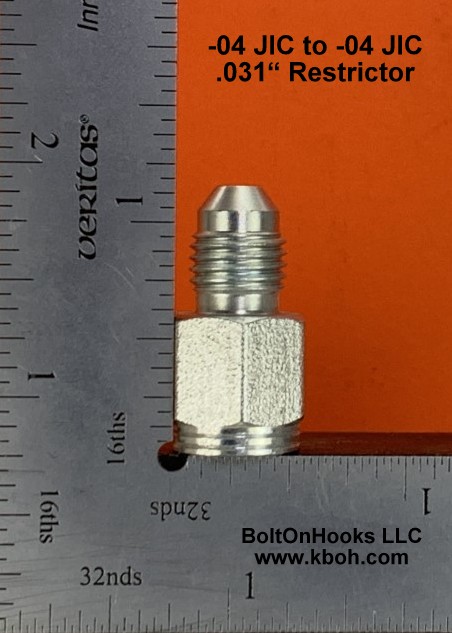

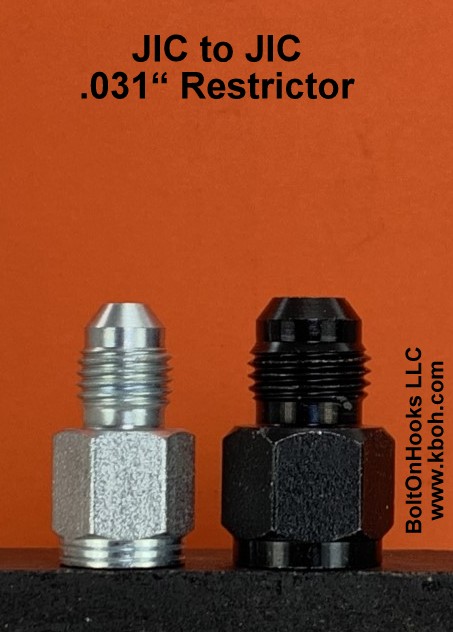

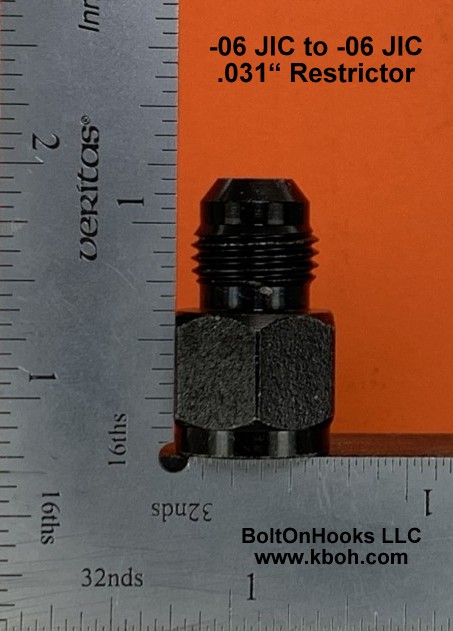

.031″ Flow Restrictor, JIC Female to JIC Male

These fixed .031″ Flow Restrictors are perfect for hydraulic top and side links, grapples, as well as any other hydraulic cylinder to help slow them down and gain more precise control. These Inline restrictors have male JIC threads on one side, and female JIC threads on the other so they are easily added to any JIC connection.

Available in two sizes:

-04 (1/4″) or -06 (3/8″) JIC (Joint Industries Council) Female
↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓
-04 (1/4″) or -06 (3/8″) JIC (Joint Industries Council) Male



Select options This product has multiple variants. The options may be chosen on the product page

$8.00 – $10.00

SKU: R.031 JIC/JIC Straight

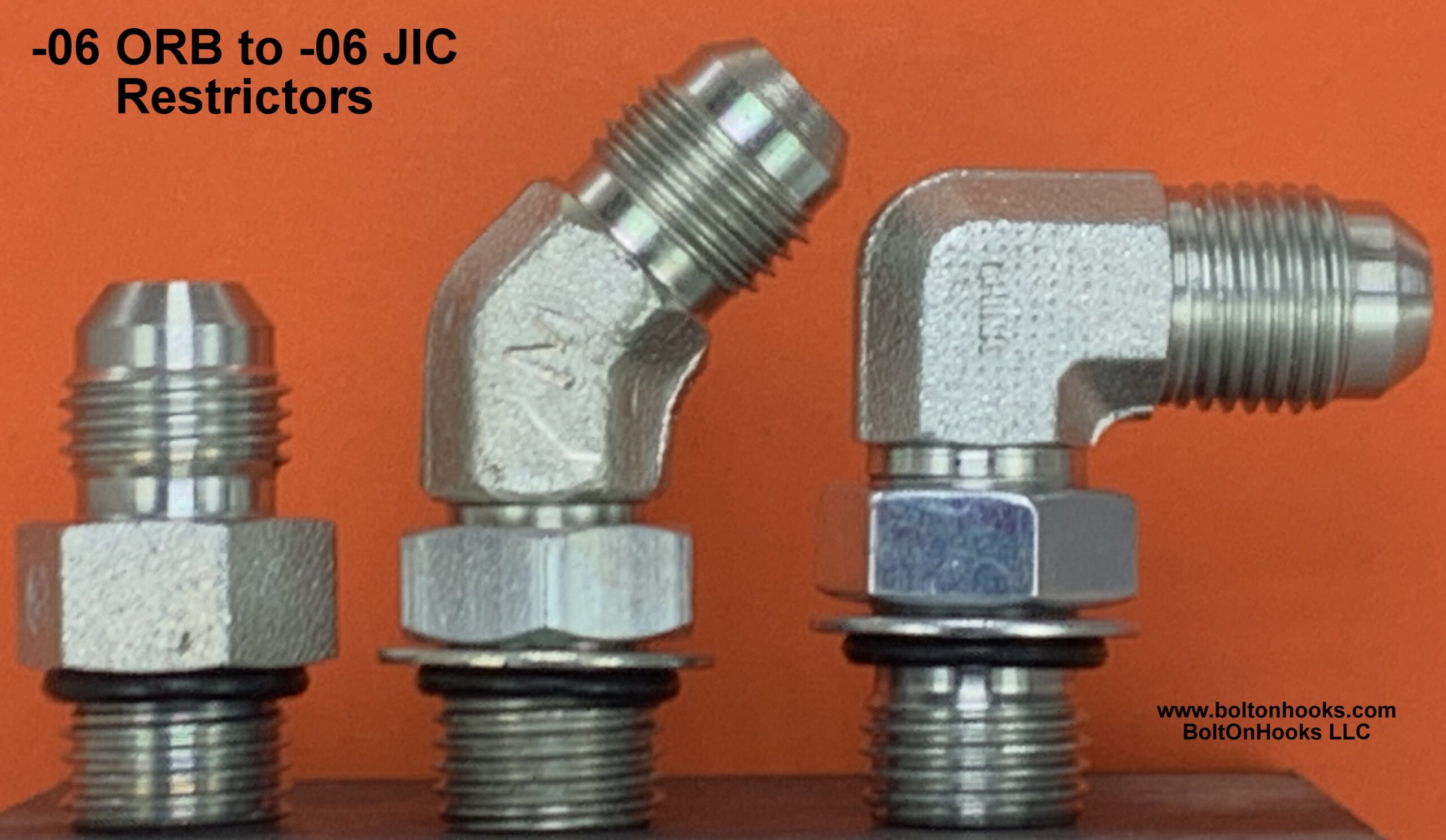

.030″ Flow Restrictor, -06 JIC to -06 ORB

These fixed .030″ Flow Restrictors are perfect for hydraulic top and side links as well as any other hydraulic cylinder to help slow them down and gain more precise control.

-06 (3/8″) ORB (O-Ring Boss)
↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓
-06 (3/8″) JIC (Joint Industries Council)

Available in Straight, 45°, and 90° configurations.

Select options This product has multiple variants. The options may be chosen on the product page

$10.00

SKU: N/A

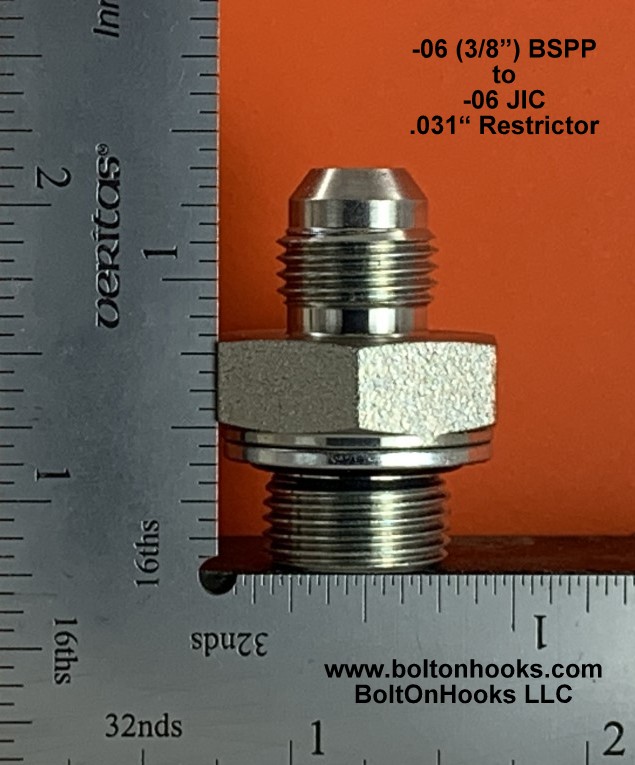

.030″ Flow Restrictor, -06 BSPP to -06 JIC

This fixed .030″ Flow Restrictors are perfect for hydraulic top and side links with “check valves” also known as DPOCV’s (Dual Pilot Operated Check Valves).  The BSPP fitting directly connects to most of the cylinders/valves sold in the USA.

-06 (3/8″) BSPP (British Standard Pipe Parallel) Male
↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓
-06 (3/8″) JIC (Joint Industries Council) Male



Add to cart

$10.00

SKU: R.030 BSPP/JIC

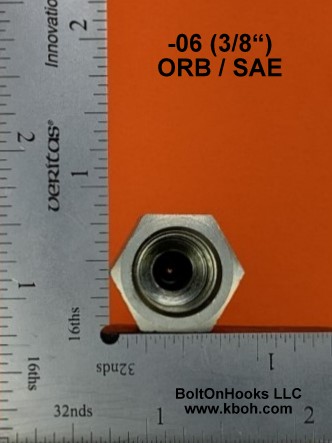

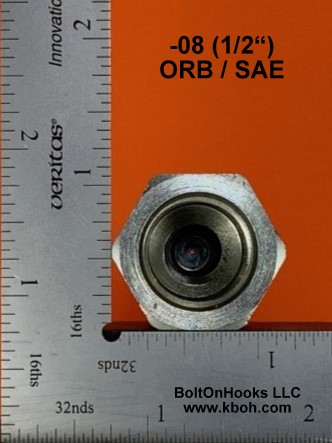

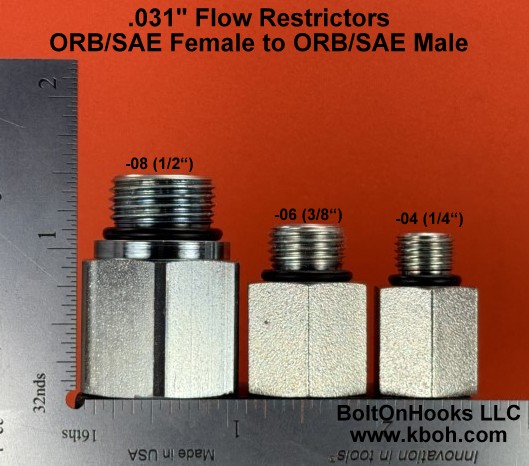

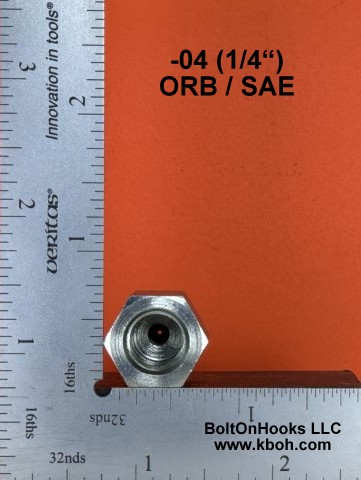

.031″ Flow Restrictor, ORB/SAE Female to ORB/SAE Male

These fixed .031″ Flow Restrictors are perfect for hydraulic top and side links, grapples, as well as any other hydraulic cylinder to help slow them down and gain more precise control. These Inline restrictors have male ORB/SAE threads on one side, and female ORB/SAE threads on the other so they are easily added to any ORB/SAE connection.

Available in three sizes:

-04 (1/4″) or -06 (3/8″) or -08 (1/2″) ORB (O-Ring Boss) /SAE Female
↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓
-04 (1/4″) or -06 (3/8″) or -08 (1/2″) ORB (O-Ring Boss) /SAE Male



Select options This product has multiple variants. The options may be chosen on the product page

$8.00 – $12.00

SKU: N/A

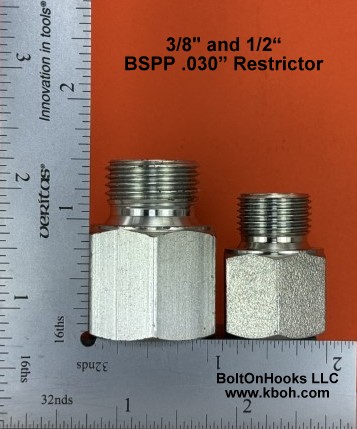

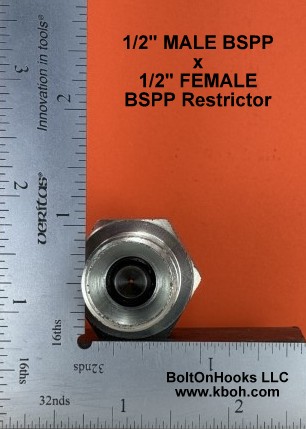

.030″ Flow Restrictor, BSPP Female to BSPP Male

These fixed .030″ Flow Restrictors are perfect for hydraulic top and side links, grapples, as well as any other hydraulic cylinder to help slow them down and gain more precise control. These Inline restrictors have male BSPP threads on one side, and female BSPP threads on the other so they are easily added to any BSPP connection. These BSPP fittings also seem common on the popular side-shift flail mowers

Available in two sizes:

3/8″ or  1/2″ BSPP (British Standard Pipe Parallel) Female
↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓ ↓
3/8″ or  1/2″ BSPP (British Standard Pipe Parallel) Male



Select options This product has multiple variants. The options may be chosen on the product page

$12.00 – $15.00

SKU: N/A
