Electrics

KBOH / BoltOnHooks LLC is now offering some electric / electronic components for sale, some tractor specific, and some universal.

USB/USB-C Power Outlet with Voltmeter

This USB/USB-C Power Outlet with Voltmeter from KBOH / BoltOnHooks LLC offers the convenience of charging outlets for all of your devices while monitoring the voltage of the electrical system of the machine.



  • Standard full-sized rocker switch mounting hole dimension is .830″ x 1.45″ (21.08mm x 36.83mm). Many machines have these holes already!
  • Should be installed on a ‘switched’ electric circuit to prevent battery drain.
  • Includes a 24″ long, 10a fused simple wiring harness.
  • 12v – 24v operation, 45 watt maximum output.
  • Cover included for dust and moisture resistance.
Add to cart

$16.99

SKU: Power Outlet / VM

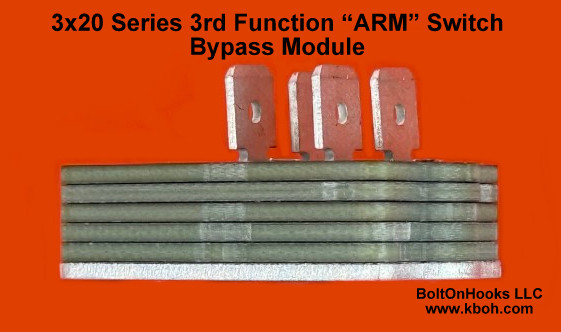

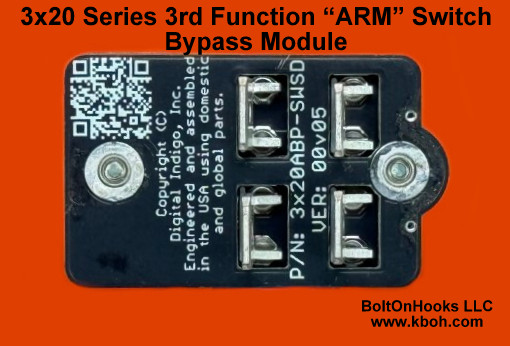

3×20 Series 3rd SCV Switch Bypass Module

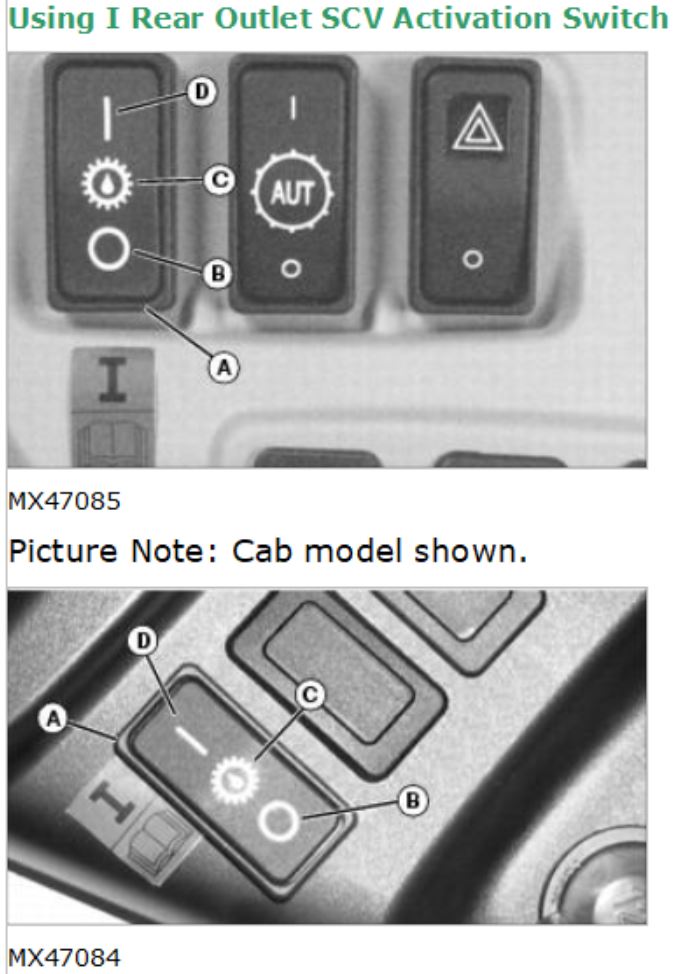

This module eliminates the cumbersome 3rd SCV Switch found on the model year 2011 and newer 3×20 (3320 / 3520 / 3720) cabbed and open station machines with the electro/hydraulic 3rd rear SCV that is operated from the joystick handle.

This device simply plugs into the harness inside the console allowing you to completely remove the switch, that space can be now used for another switch, or our USB/USB-C  Voltmeter accessory, or simply blanked off. Once installed, the 3rd SCV will be ready for use  whenever the key is in the RUN position or the tractor is running without first needing to ‘arm’ or ‘activate’ the system with that rocker switch.

Add to cart

$25.00

SKU: 3rd SCV Bypass

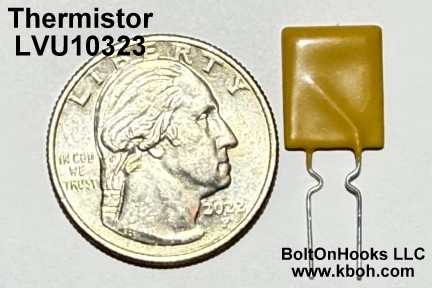

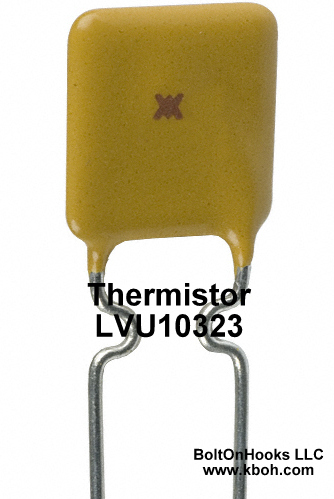

Thermistor LUV10323

This Thermistor is used in the John Deere 4200, 4300, 4400, 4500, 4600, and 4700 series tractors in the fuel solenoid circuit.  If your machine will crank but not start, the Thermistor is the most likely cause. Search the popular forums (GTT and TBN) for lots of reading!

This is an exact OEM LUV10323 replacement, but at less than 50% of the John Deere price.

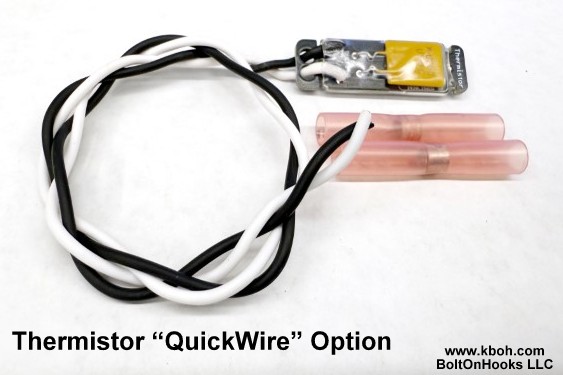

This part is most often found soldered in the wiring harness behind the fuse panel, and very difficult to replace.  We have made this job much easier with our new QuickWire kit that includes 12″ pigtails and heat shrink solder sleeves.

Select options This product has multiple variants. The options may be chosen on the product page

$6.00 – $25.00

SKU: N/A
